File:DiamondTel Model 92 - Power Supply Diagram.png

From 3000GT/Stealth Wiki
Jump to navigation Jump to search
DiamondTel_Model_92_-_Power_Supply_Diagram.png ‎(710 × 575 pixels, file size: 16 KB, MIME type: image/png)

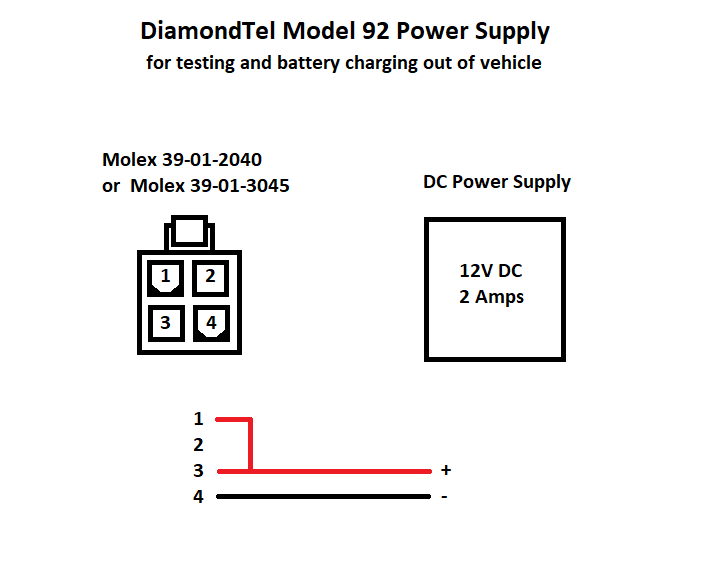

Diagram for a power supply for the DiamondTel Model 92 Cellular Telephone (e.g., an AC/DC power adapter) to be used for testing the phone or charging its battery while not installed in a vehicle.
