Engine: Troubleshoot Mass Air Flow Sensor (MAF)

From 3000GT/Stealth Wiki
Jump to: navigation, search

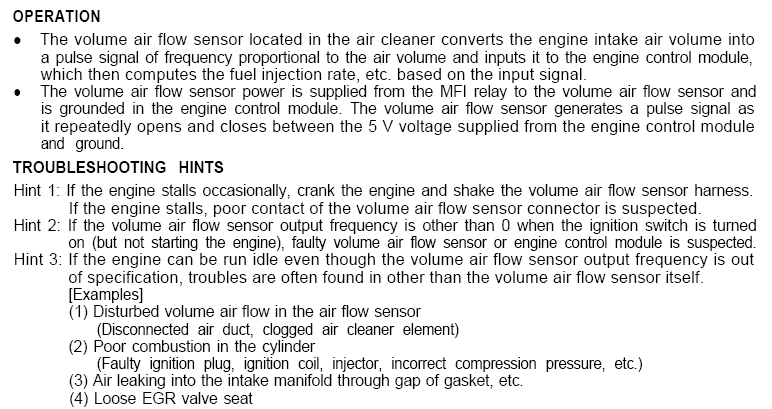

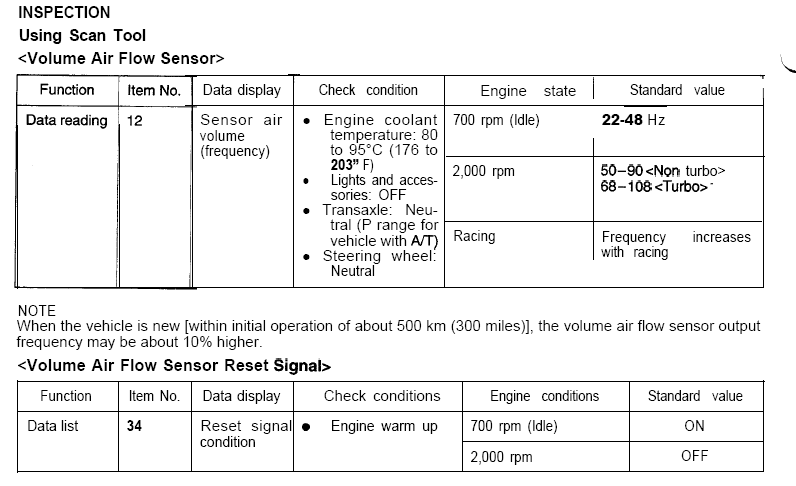

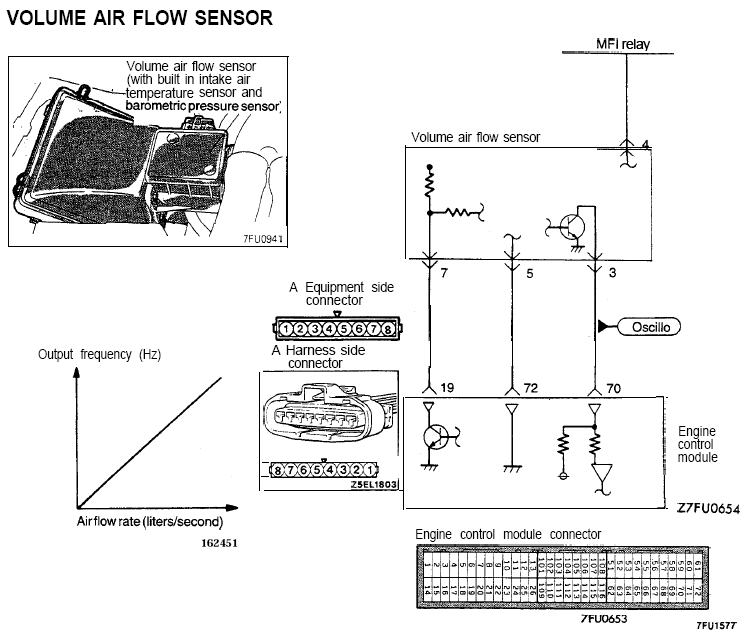

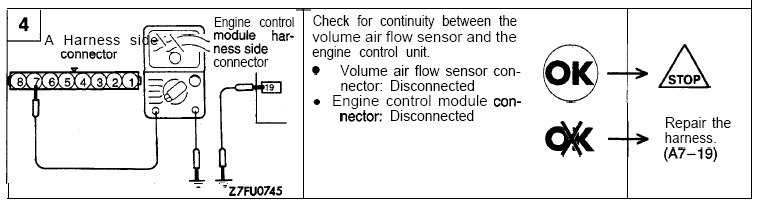

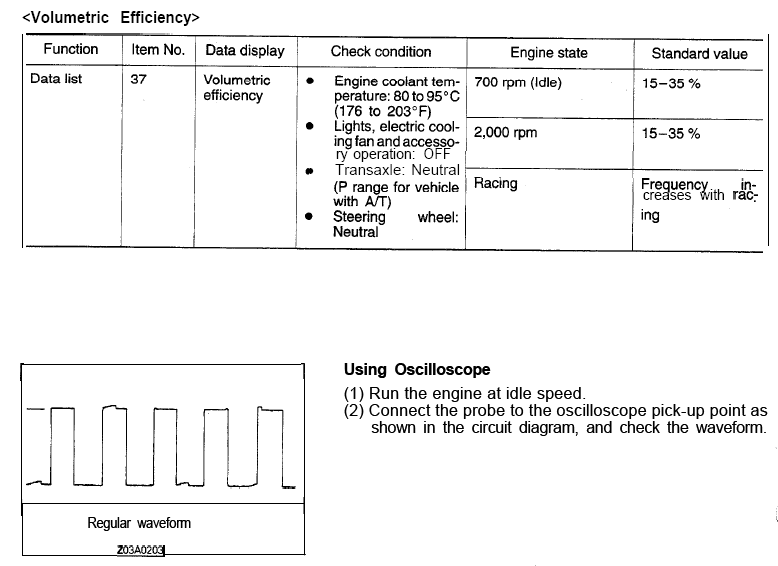

Volume Air Flow Sensor







This article originated from a thread or post on 3000GT/Stealth International. (1939)
