Engine: Troubleshoot Camshaft and Crankshaft Position Sensors

From 3000GT/Stealth Wiki
Jump to: navigation, search

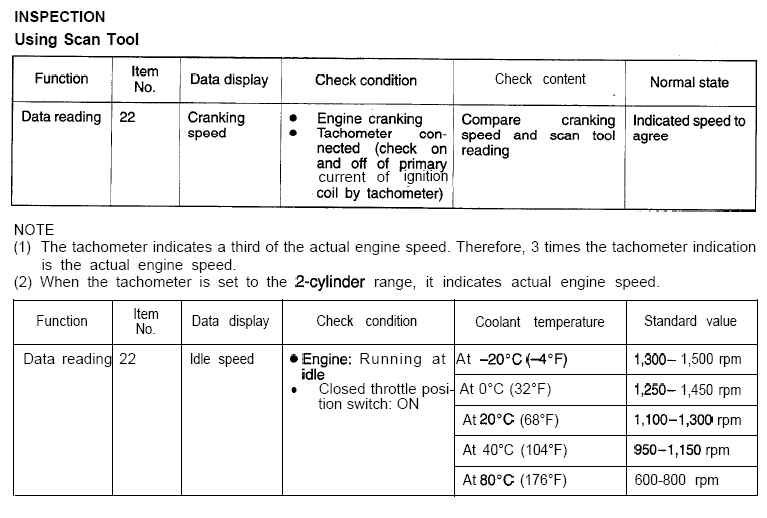

CAS, Crank and CAM Angle Sensors

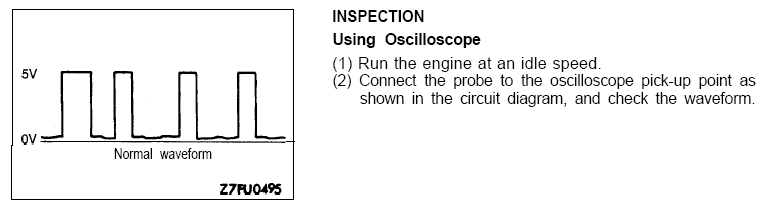

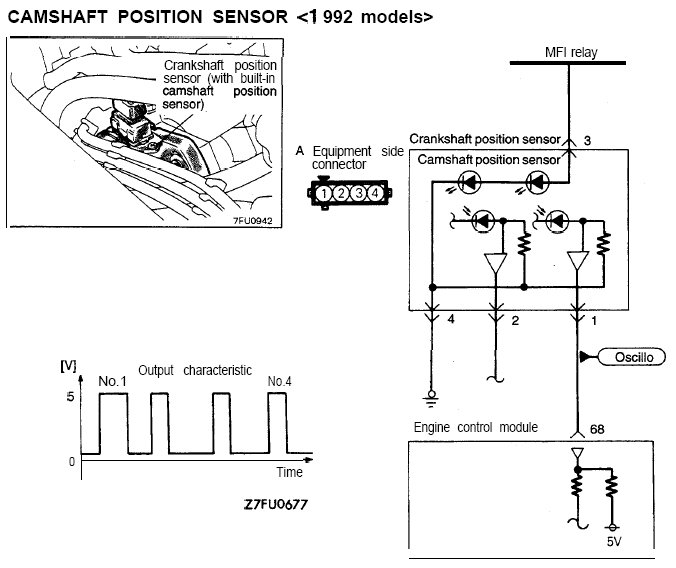

Camshaft Position Sensor (1992 Models)

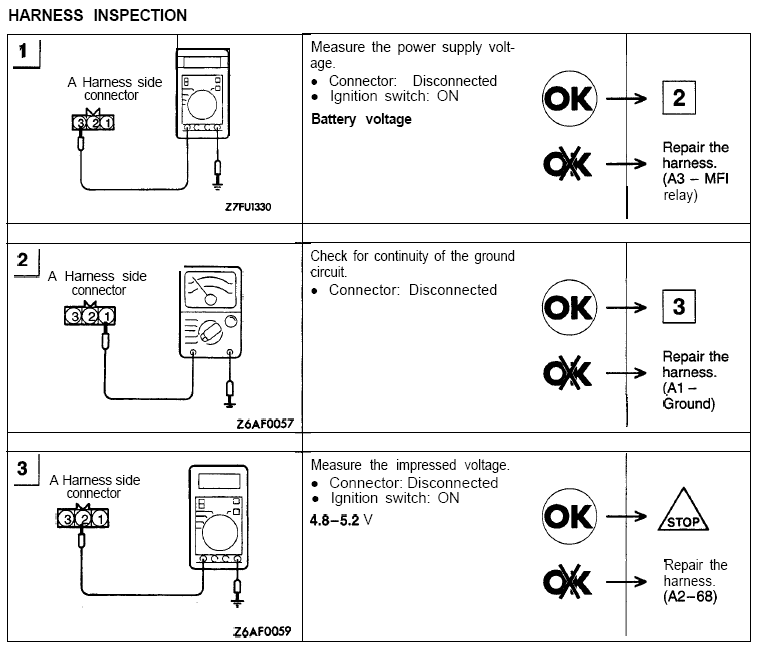

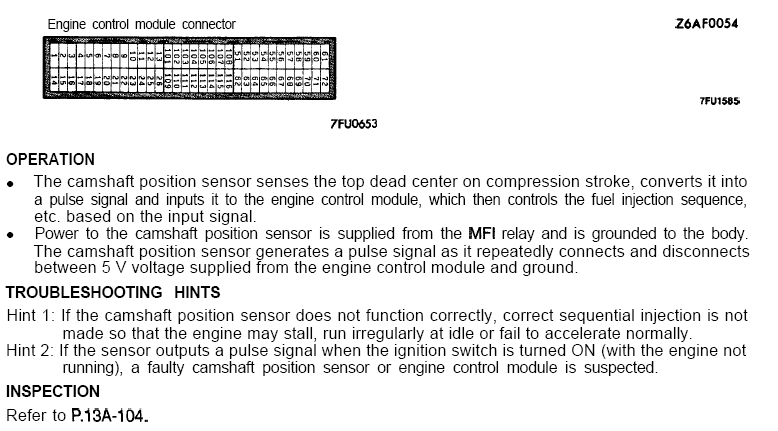

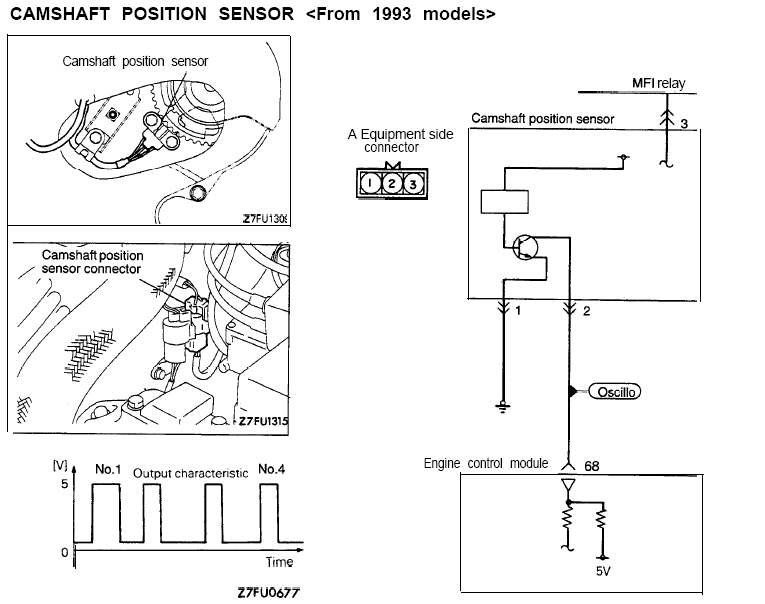

Camshaft Position Sensor (1993 Models)

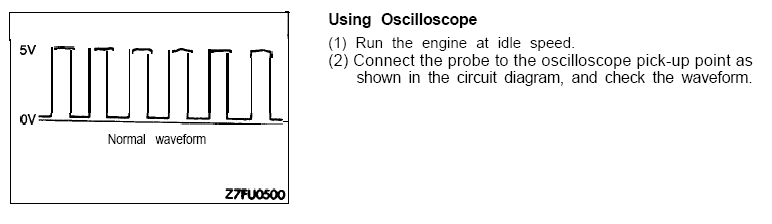

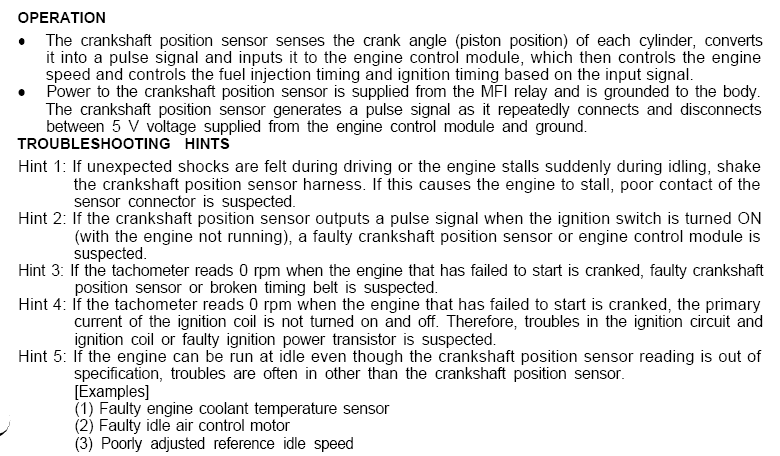

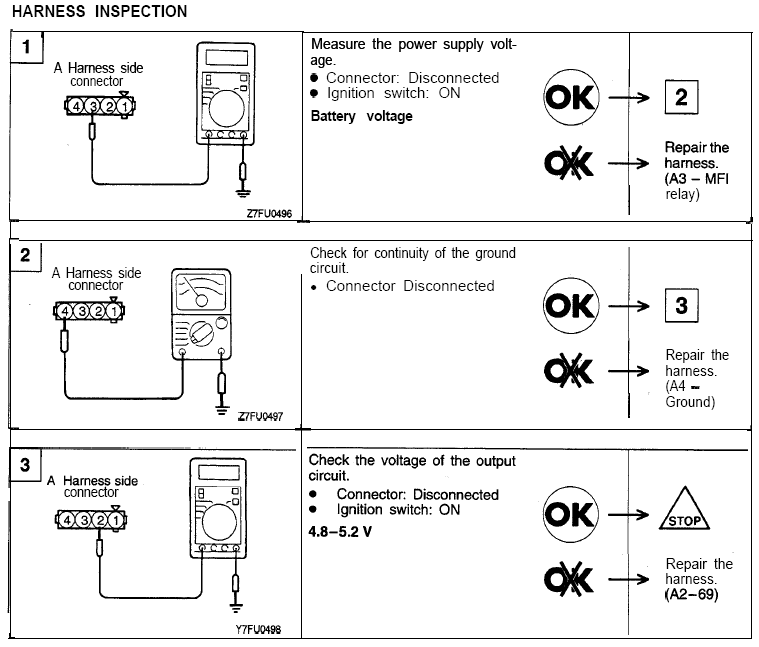

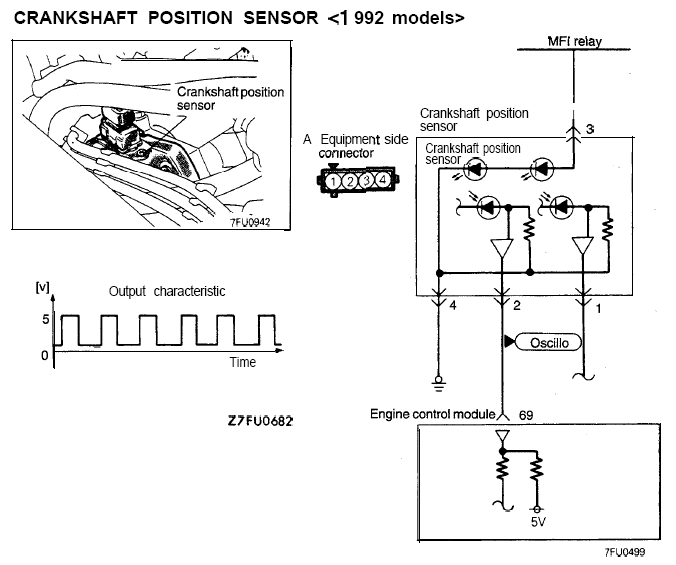

Crankshaft Position Sensor (1992 Models)

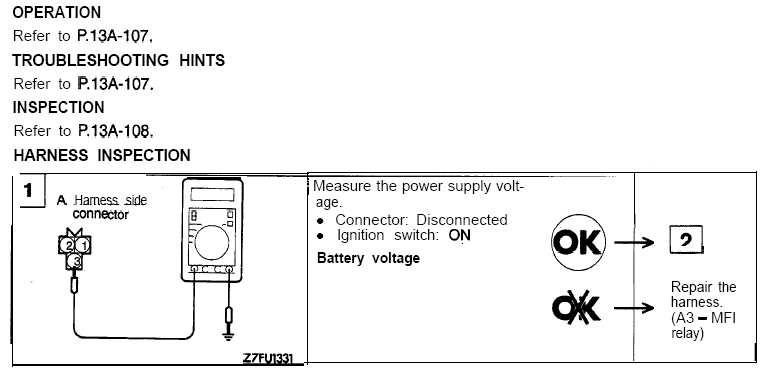

Crankshaft Position Sensor (1993 Models)




This article originated from a thread or post on 3000GT/Stealth International. (1911)
